DiaMension® HD

producticon1
THE WORLD'S MOST SOPHISTICATED CUT & SYMMETRY MEASUREMENT

DiaMension HD

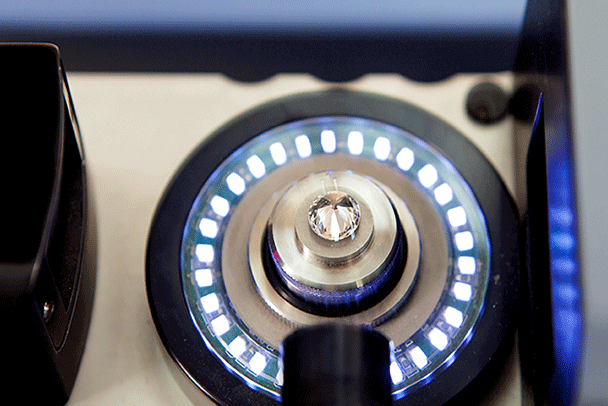

DIAMENSION® HD是一款先进的高精度切工比例仪,可实现高保真、高精度、具一致性的3D建模,用于测量成品和半成品钻石。该系统被全球几乎所有主流实验室沿用至今,包括美国宝石学院GIA、中国自然资源部珠宝玉石首饰管理中心NGTC、比利时钻石高阶层议会HRD、比利时宝石学院实验室IGI、日本中央宝石研究所CGL等。

producticon2
Key Benefits

  • Superior accuracy
  • Fast measurement
  • Interchangeable lenses to support stones of 1mm up to 28mm in diameter
  • Supports scanning of fully polished and semi-polished diamonds

producticon3
Technical Specifications

  • Stone sizes
    3.0 to 28.0 millimeters in diameter (approx. 0.1 to 70.0 polished carats) with interchangeable lenses:
    Lens #0: 13.0-28.0 mm
    Lens #1: 6.0–21.0 mm
    Lens #2: 4.0–13.0 mm
    Lens #3: 3.0–8.0 mm
  • Accuracy
    Linear: ± 10 microns (± 0.01 mm), Angular: ± 0.1 degrees
  • Weight
    8.5 kgs (18.7 lbs)
  • Operating Voltage
    110/220 VAC, 50/60 Hz
  • Applicable
    Instructor®, Advisor®
