DiaScribe®

producticon1
PRECISION DIAMOND INSCRIPTION

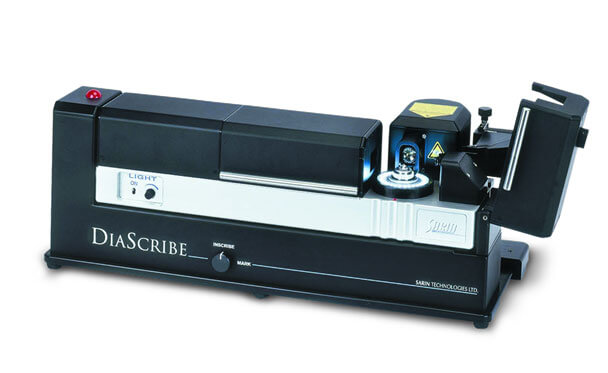

DiaScribe

SARINE DiaScribe®是经济、高效的激光刻字系统，适用于各种钻石类型。

producticon2
Key Benefits

  • Fast and cost-effective
  • Identify and protect your diamond with its serial/certificate number
  • Brand your diamonds with your company logo
  • Offer your customer the option of a personalized message inscription
  • Diamond inscriptions available in virtually any language using any Windows® True-Type® font
  • Import any logo or image as *.bmp, *jpg, or *.gif file
  • Use the optional ‘Inscription Viewer’ feature for instant and automatic viewing of the inscribed stone
  • Supports inter-switchable lenses for varying required stone sizes

producticon3
Technical Specifications

  • Text and logo sizes
    Maximum: unlimited (depending on the height of the girdle) Minimum: ~30 microns high (depending on the complexity of the character)
  • Speed (average time for inscribing 10 large characters)
    90 sec
  • Inscription line width
    5 microns (0.005 mm)
  • Marking areas on diamond
    Girdle only
  • Diamond shapes suitable for inscription
    Round Brilliant and all fancy shapes (some limitations apply to inscribing on extreme square corners)
  • Stone Sizes
    1 to 28 millimeters in diameter (approx. 0.01 to 70 polished carats) with
  • Multi Lens (ML) 1 to 28 mm with interchangeable lenses
    Lens #0: 13.0-28.0 mm
    Lens #1: 6.0–15.0 mm
    Lens #2: 4.0–9.0 mm
    Lens #3: 3.0–6.5 mm
    Lens #4: 1.0-3.5 mm
  • Single Lens (SL) 3 to 11 mm
    Available SL models for different stone sizes:
    3 to 15 millimeters in diameter on different machine models:
    SL #1.1: 6-15 mm
    SL #1.2: 5-11 mm
    SL #1.22: 4-9 mm
    SL #1.3: 3-6.5 mm
