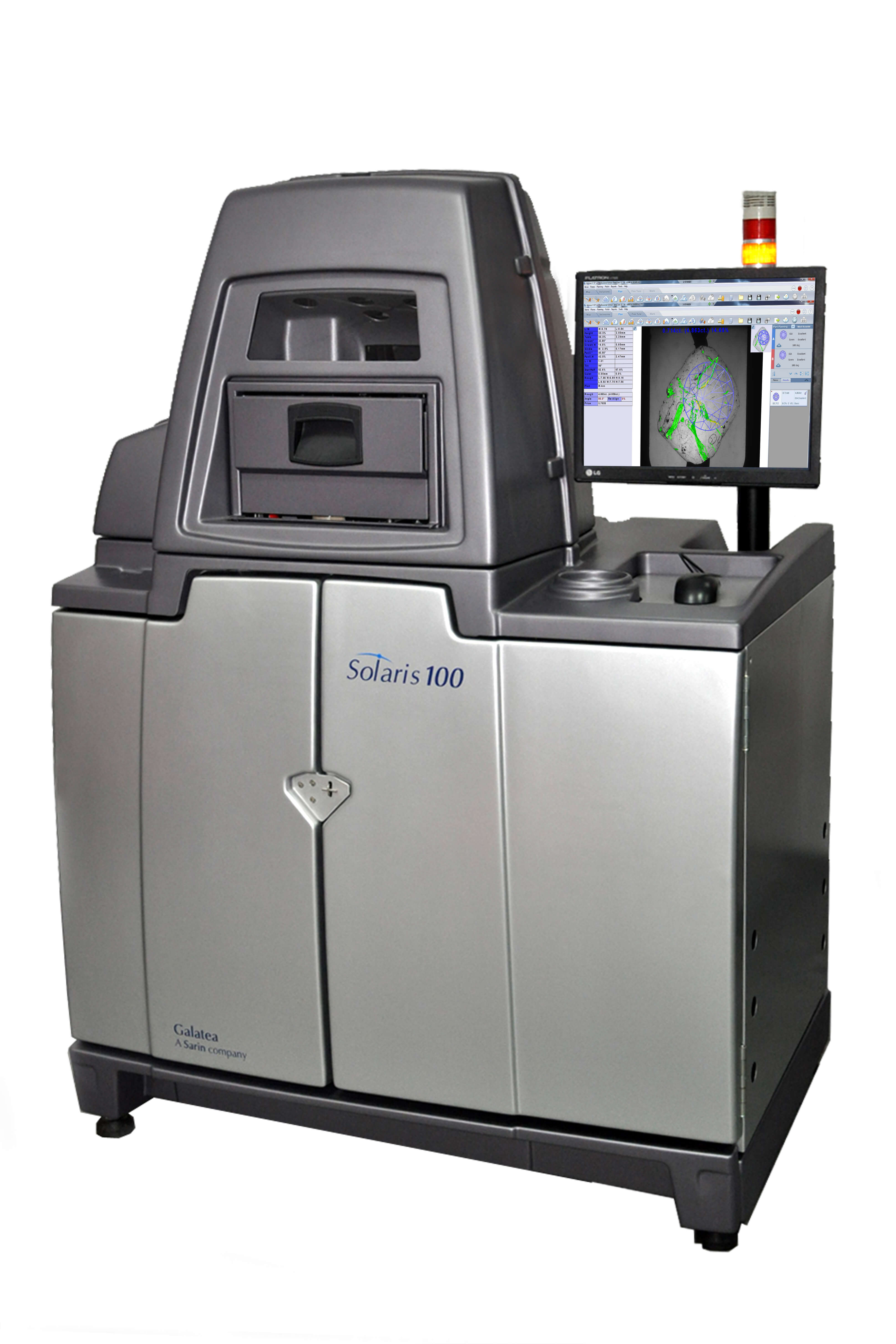

Solaris® 100

producticon1
HIGH SPEED INCLUSION MAPPING FOR SMALLER DIAMONDS

SARINE Solaris® 100系统是毛坯钻石内部特征检测和绘图的全自动技术解决方案,其输出数据精度与Galaxy 1000系统同样,同时还特别适用于小型毛坯原石(2.5克拉以下)的切割设计。

producticon2
Key Benefits

  • Handles all types of inclusions whether transparent or black - piques, cracks (“gletzes”), bubbles, clouds, etc.
  • Detects inclusions up to I3 classification
  • Scans most diamonds including, frosted and slightly coated, regardless of level of impurities
  • Scans diamonds up to ~ 2.5ct
  • Generates an accurate 3D model of the rough diamond, clearly mapping all inclusions
  • Average productivity of 6 stones per hour, regardless of level of impurities.
  • Fully integrated with Advisor planning platform: Precise rough planning based on internal features without any human errors Advanced optimization of polished diamonds taking into consideration all relevant information – Carat, Clarity and Cut Includes Stone Management System to efficiently control the entire process

producticon3
Technical Specifications

  • Stone Sizes
    H - Up to 9 mm
    W - Up to 7 mm
  • Dimensions
    L: 1.15m (3'9"); w:0.75m (2'6"); H: 1.65m (5'5")
  • Productivity
    5 stones per hour (average)
  • Detection Ability
    VS to I3
  • Electrical Inputs
    220V, 25A, 50 Hertz
  • Power Consumption
    1.0 kW/h
  • Weight
    ~350kg (771 Ibs)
