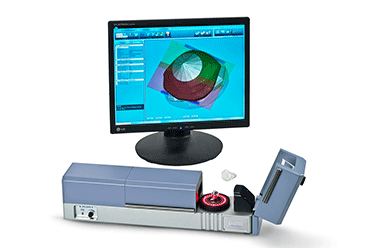

Strategist®

producticon1
STREAMLINED LASER SAWING WITH INTEGRATED ADVISOR & QUAZER FUNCTIONALITY

Strategist®是一个设置平台,集成了尚灵的Advisor®毛坯钻石加工规划输出数据(包括Galaxy® / Solaris®系统提供的包裹体绘图数据)和Quazer®激光锯切套件。

producticon2
Key Benefits

  • Increases Quazer II productivity: Higher throughput, Lower breakage, Less stone weight loss, Fewer operation errors, Multiple stone processing setup
  • Utilization of Galaxy/Solaris inclusion mapping and Advisor planning data, providing you with more confident sawing: Inclusion types and locations, Proposed polished stone locations, Proposed saw plane locations
  • Easily compare between various sawing strategies
  • One Strategist can support up to three Quazer machines semi-automatic solution, to plan and accurately execute optional pie-cut sawing

producticon3
Technical Specifications

  • Dimensions
    50cm x19cm x13cm; 19.7” x 7.3” x 5.1”
  • Weight
    8.5kg / 18.7 lbs
  • Powered by
    computer (12V, ±5V)
  • Interchangeable lenses available for different stone sizes (approx. 0.2 to 100 rough carats)
    Lens #0: for stones 13.0 – 28.0 mm
    Lens #1: for stones 6.0 – 15.0mm
    Lens #2: for stones 4.0 – 9.0 mm
    Lens #3: for stones 3.0 – 6.5 mm
