DiaExpert® Edge

producticon1

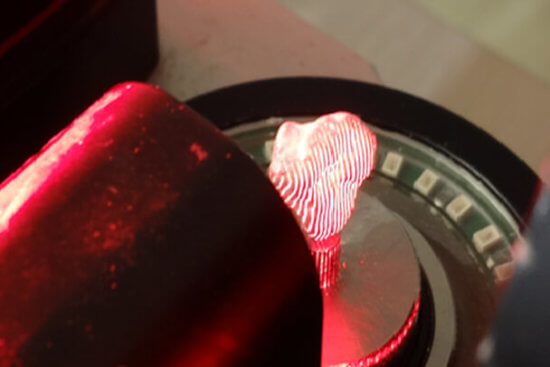

Unprecedented Accuracy in 3D Modeling

Rough diamond planning

SARINE DiaExpert® Edge是一项高精度3D建模技术,可保证出色的精度水平,超越市场上所有其他毛坯钻石建模解决方案。

producticon2
Key Benefits

  • Unprecedented accuracy in 3D modeling of the rough diamond
  • Even the tiniest grooves and naturals are captured in the 3D model
  • High accuracy levels enable the use of significantly thinner planning margins
  • No more need for manual intervention or correction of the 3D model
  • Improved integration with Galaxy® inclusion mapping systems
  • Accurately maps rough diamonds after complicated sawing procedures, such as V-shape and scope sawing
  • No major purchase of new hardware required: DiaExpert EdgeTM can be retrofitted on existing DiaExpert® platforms

producticon3
Technical Specifications

  • The system is available in 4 configurations
    • DiaExpert Edge ML
    • DiaExpert Edge SL
    • DiaExpert Edge ML Eye edition
    • DiaExpert Edge SL Eye edition
  • Stone Sizes - DiaExpert Edge
    Available lenses for multi-lens machine:
    1 to 28 millimeters in diameter (approx. 0.01 to 100 rough carats) with interchangeable lenses:
    Lens #0: 13-28 mm
    Lens #1: 6–15 mm
    Lens #2: 4–9 mm
    Lens #3: 3–6.5 mm
    Lens #4: 1-3.5 mm

    Available SL models for different stone sizes:
    3 to 15 millimeters in diameter on different machine models:
    SL #1.1: 6-15 mm
    SL #1.2: 5-11 mm
    SL #1.22: 4-9 mm
    SL #1.3: 3-6.5 mm
  • Stone Sizes - DiaExpert Edge Eye Edition
    Multi Lens (ML)
    Available lenses for multi-lens machine:
    3 to 28 millimeters in diameter (approx. 0.30
    to 100 rough carats) with interchangeable
    lenses:
    Lens #0: 13-28 mm
    Lens #1: 6–21 mm
    Lens #2: 4–13 mm
    Lens #3: 3–8 mm

    Single Lens (SL)
    Available SL models for different stone sizes:
    3 to 21 millimeters in diameter on different machine
    models:
    SL #1.1: 6-21 mm
    SL #1.2: 4-13 mm
    SL #1.3: 3-8 mm
  • Dimensions
    L: 49.6 cm (19.5"); D: 17.7 cm (7.0"); H: 16 cm (6.3")
  • Weight
    10.1kgs (22.3 lbs)
  • Operating Voltage
    110/220 VAC, 50/60 Hz
