DiaMark™ HD

producticon1
LASER MARKING THAT LEADS TO CONFIDENCE

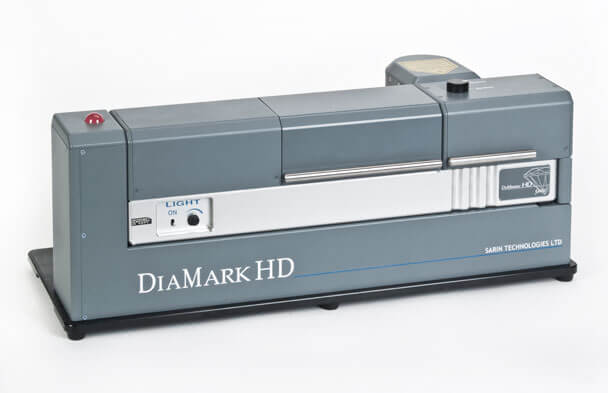

DiaMark-HD

SARINE DiaMark™ HD是一个激光打标系统，专门用于在半成品钻石上标记校正性打磨操作指示。

producticon2
Key Benefits

  • Ideal for marking re-cut or corrective cutting instructions on polished diamonds
  • Controllable laser parameters enable optimization of laser performance by stone types
  • Marks the stone according to instructions provided by Instructor™, eliminating discrepancies between the recut or corrective planning stages and the polishing process
  • Marked lines are vivid black and easy to see but low penetration depth ensures easy removal by subsequent polishing

producticon3
Technical Specifications

  • Laser marker line width
    6 microns (0.006 mm) or thicker
  • Multi Lens 3 to 28 mm with interchangeable lenses:
    Lens #0: 13.0-28.0 mm
    Lens #1: 6.0–21.0 mm
    Lens #2: 4.0–13.0 mm
    Lens #3: 3.0–8.0 mm
  • Dimensions
    L: 57cm (22.4"); D: 23cm (9.1"); H: 22cm (8.5")
  • Weight
    15Kg (33.1Ibs)
  • Operating Voltage
    110/220 VAC; 50/60 Hz
  • Applicable
    Instructor™ 2.6, Advisor™
